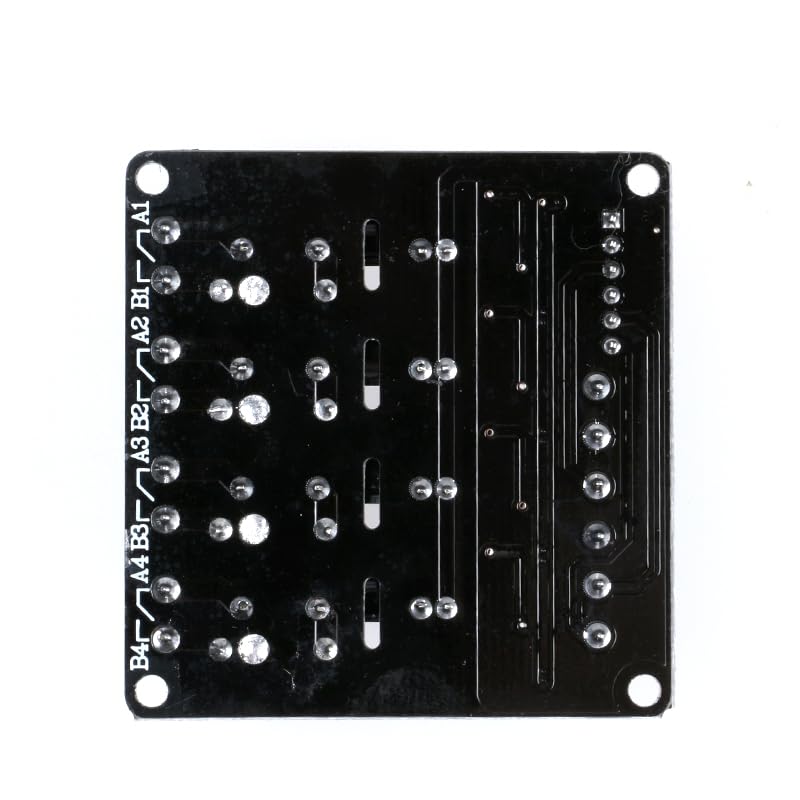

2Pcs 5V 2A Solid State Relay Module 4 Channel Low Level Trigger 250V2A SSR Durable DIY AC DC Solid State Relay Board for Arduino
Product details
| Management number | 247510007 | Release Date | 2026/08/16 | List Price | US$6.00 | Model Number | 247510007 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product parameters Power supply voltage: 5V Static current: 0mA Working current: ≤ 48mA Trigger method: low-level trigger Load voltage: 240VAC Load current: 2A Module lifespan: 10 million times Switching frequency: ≤ 5KHz Structural dimensions: 57X55X25mm (length x width x height) Positioning hole size: 51.4X49.4mm
- Adopting AC solid-state relays with high quality
- Strong anti-interference ability and stable performance
- Low control current and high load power
- It has the function of reverse power connection, and the wrong module will not be damaged
- Each route has a status indicator light, and the status is clear and visible
| ASIN | B0CPJFP8NT |
|---|---|
| Wattage | 480 watts |
| Brand Name | EC Buying |
| Unit Count | 2 Count |
| Coil Voltage | 5 volts |
| Contact Type | Normally Open |
| Manufacturer | EC Buying |
| Mounting Type | Surface Mount |
| Connector Type | Through Hole |
| Current Rating | 2 A |
| Operation Mode | Automatic |
| Contact Current Rating | 2 A |
| Maximum Switching Current | 2 A |
| Maximum Switching Voltage | 240 volts |
| Minimum Switching Voltage | 240 volts_of_alternating_current |
